Products Description
- Brand: SFXB

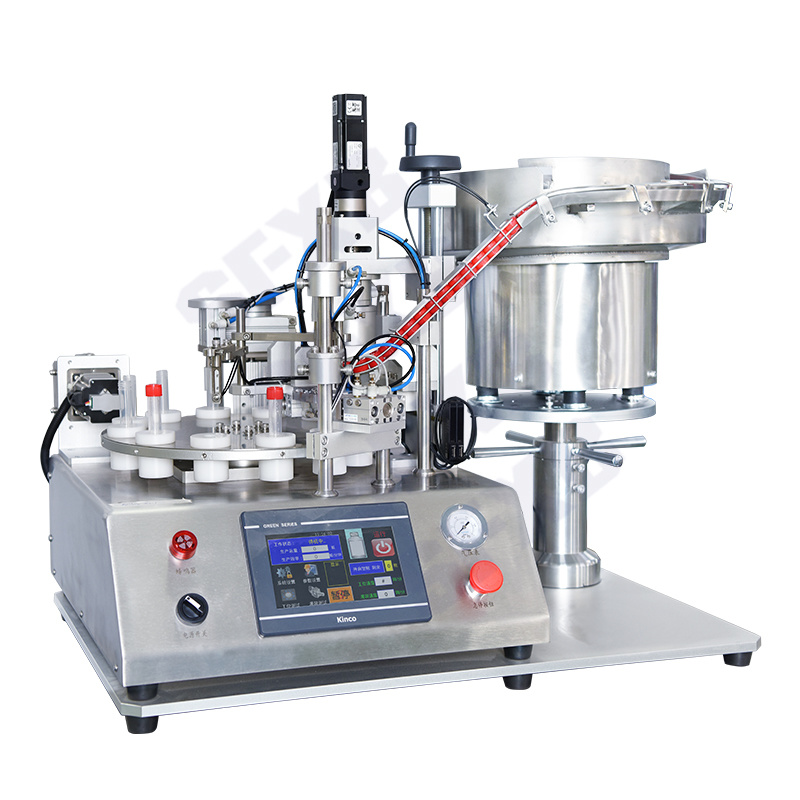

- Commodity name: Desktop ceramic pump filling production line (bottle delivery/filling/capping/capping/bottle output)
- Commodity ID: XBZP-25S
Especially suitable for various bottle shapes that are not easy to stand
Technical parameter
| pump head material | Plunger, pump chamber sleeve (99.99% alumina) |
| Filling accuracy | ±≤0.5%
(Using water as the standard, more than 30% of the maximum filling value can achieve accuracy) |
| drive mode | Electric + pneumatic input |
| Yield | 25~28 bottles/min |
| powered by | AC220V 50/60Hz 200W/350W |
| air supply | 0.4-0.6Mpa |
| weight | 60.5kg |
| Host size (length L*width W*height H) | 1360×775×733(mm) |
Scope Of Application
■ This equipment fully complies with the national GMP certification requirements;
■ Adopt Xueba high-purity, high-clean, corrosion-resistant valveless ceramic pump;
■ Especially suitable for various types of bottles that are difficult to stand on;
■ This equipment includes functions of filling and servo capping, pneumatic capping and capping (choose according to product requirements);
■ This equipment has the functions of no bottle no filling, no cap no rotation, and automatic bottle removal.
