Description
Technical parameter
Products Description
- Brand: SFXB

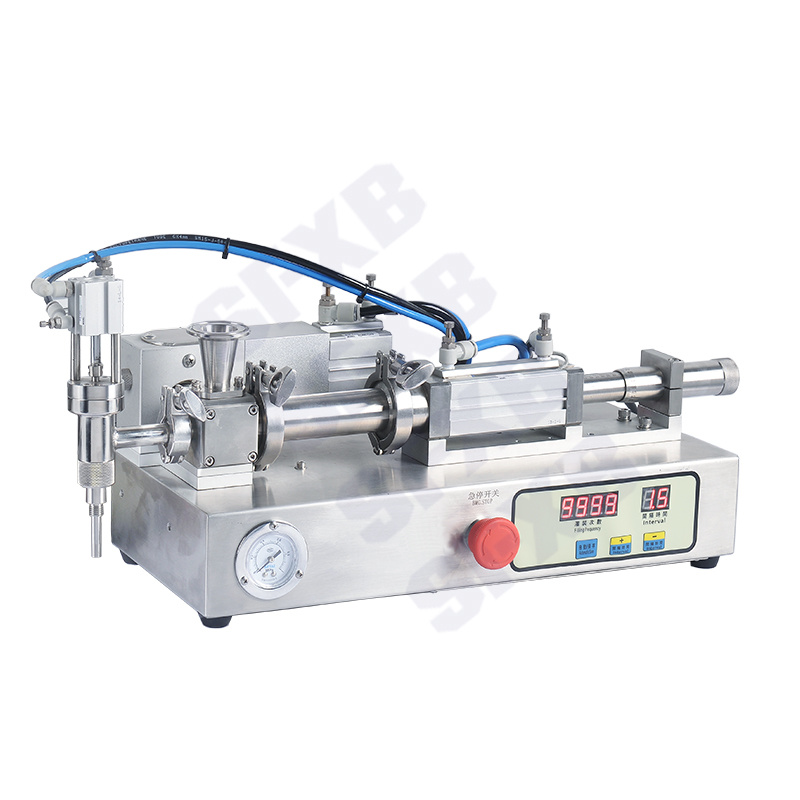

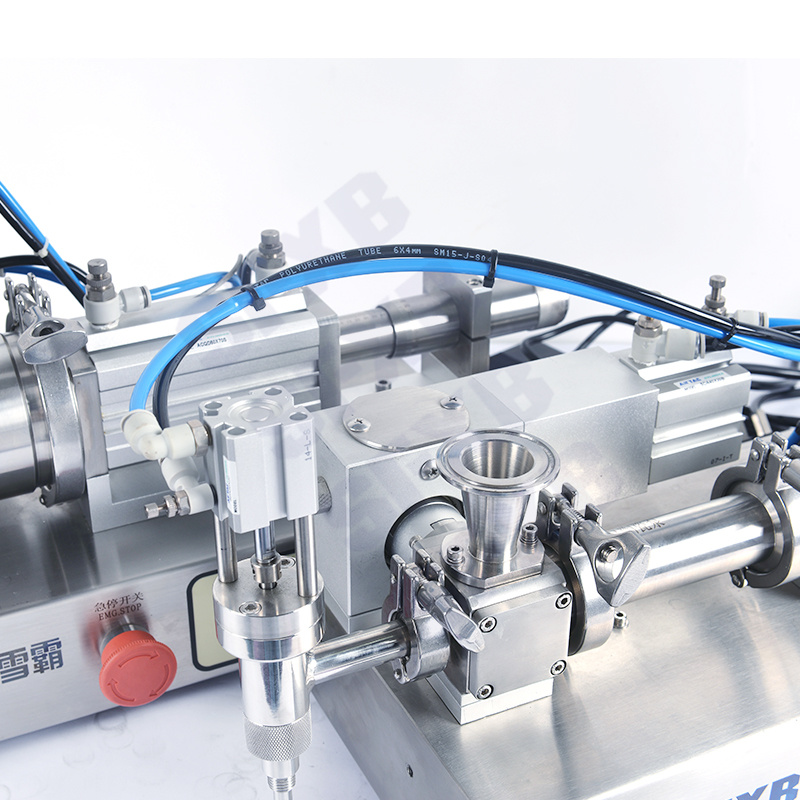

- Commodity name: XBTG series high-precision ceramic pump desktop paste liquid pneumatic filling machine
■ It is controlled by single-chip microcomputer, and the operation data can be adjusted and stored; ■ It adopts high-purity and high-clean ceramic pump with Xueba rotary valve plunger; ■ It can be filled with paste and liquid, practical and convenient
Technical parameter
| model | XBTG-12 | XBTG-25 | XBTG-50 | XBTG-100 | XBTG-200 | XBTG-500 | XBTG-1000 |
| Filling accuracy | ±≤0.20~0.5% (with water as the standard, the accuracy can be achieved by more than 30% of the maximum filling value) | ||||||
| Filling range | 1~12ml | 2~25ml | 3~50ml | 5~100ml | 10~200ml | 20~500ml | 50~1000ml |
| Filling speed | 20~50 times/minute 20~50 | ||||||
| powered by | AC220V 50/60Hz 250W | air supply | 0.4~0.6Mpa | ||||
| weight | 15.5kg | 21kg | |||||
| Host size (length L*width W*height H) | 560×260×480(mm) | 950×300×700(mm) | |||||
Scope Of Application
■ Scientific research institutes, laboratories, pharmaceutical factories, cosmetics factories, etc.;
■ Widely used in the precise quantitative filling of pharmaceutical, pharmaceutical, food, chemical, cosmetic and other industries;
■ Precise quantitative filling of various acid-base corrosive pastes and liquids
