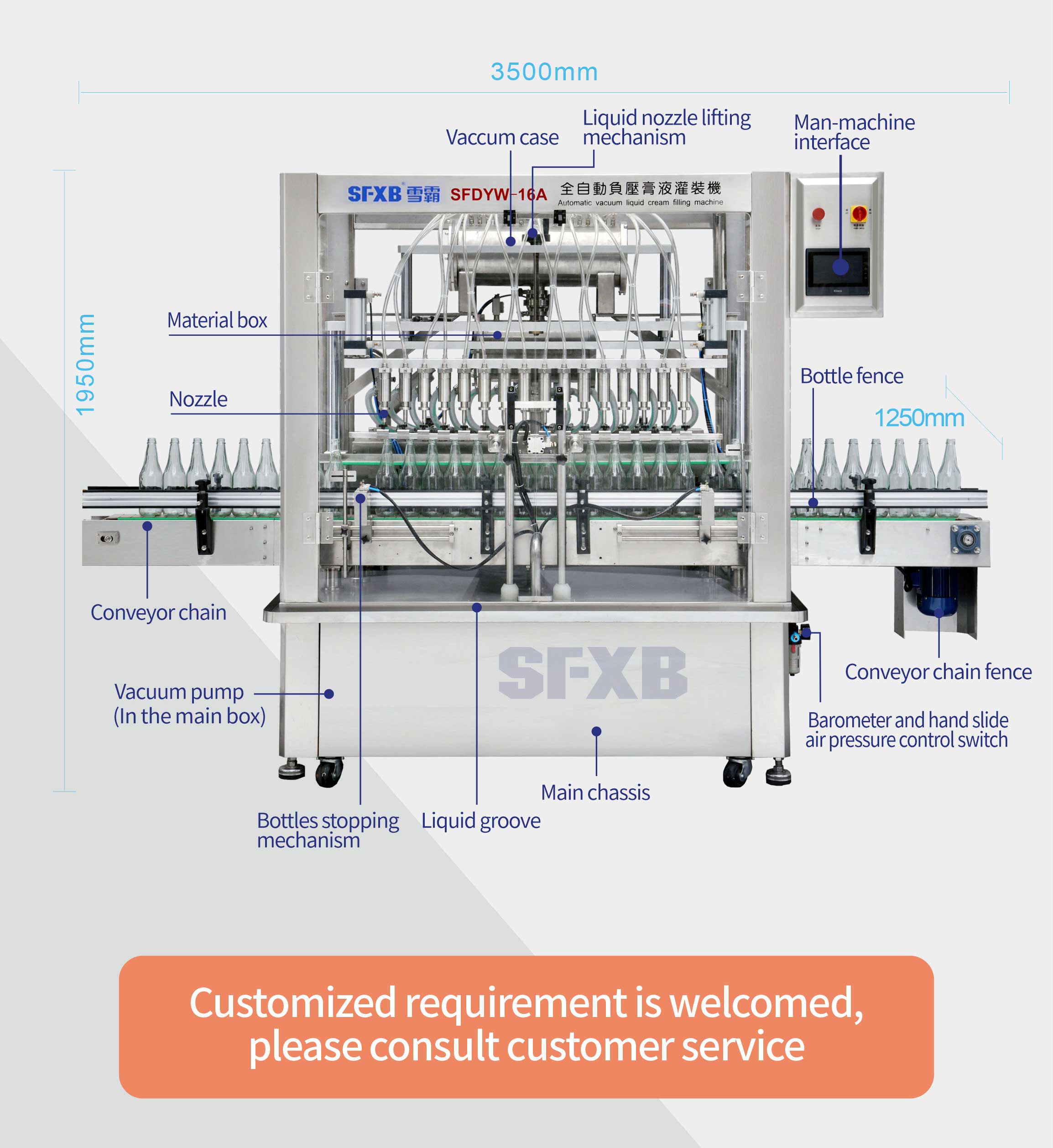

XBDYW-16 Fully automatic 16-head negative pressure ointment filling machine (glass bottle)

Adopt vacuum negative pressure filling technology, compact and reasonable structure, anti-foaming, anti-drip
Send Inquiry
Description
Technical parameter
Products Description

  • Brand: SFXB
  • Commodity name: XBDYW-16 Fully automatic 16-head negative pressure ointment filling machine (glass bottle)

Adopt vacuum negative pressure filling technology, compact and reasonable structure, anti-foaming, anti-drip

■Adopt advanced man-machine interface operation , PLC control ;
■Using vacuum negative pressure filling technology , compact and reasonable structure , anti-foaming , anti-drip ;
■The material contact parts are all made of 316L stainless steel , and the appearance is 304 stainless steel , which fully meets the food hygiene standards .

XBDYW-16 Fully automatic 16-head negative pressure ointment filling machine (glass bottle)



XBDYW-16 Fully automatic 16-head negative pressure ointment filling machine (glass bottle)

XBDYW-16 Fully automatic 16-head negative pressure ointment filling machine (glass bottle)

XBDYW-16 Fully automatic 16-head negative pressure ointment filling machine (glass bottle)

XBDYW-16 Fully automatic 16-head negative pressure ointment filling machine (glass bottle)

XBDYW-16 Fully automatic 16-head negative pressure ointment filling machine (glass bottle)

Technical parameter

project  XBDYW-16
Filling volume ( optional ) 80~500ml 500~2000ml
Filling speed 60~ 80 bottles / min 30~ 60 bottles / min
Filling accuracy ≤± 3mm ( page error )
Applicable bottle height 65~260mm
Applicable bottle diameter 38~100mm
pressure range  0.4〜0.6Mpa _ _ _

Scope Of Application

■ Suitable for filling condiments / sauces in small and medium caliber glass bottles ;
■ Suitable for liquid : filling of soy sauce , vinegar , beverage ; viscous material with particles : filling of chili sauce , tomato sauce , oyster sauce .
